Apollo Hot Tank
Model: AT10000
Platform size: 3700mm L X 1420mm W
Liquid above platform: 1100mm.
New generation caustic cleaning system including Centrifugal Filter and optional Rinse Bay
Save time, money and environment
Caustic parts cleaning is an unpleasant and costly part of the cleaning process in most workshops, however it has proven to be the only effective one-step method of cleaning those unseen areas such as oil galleries and exhaust ports
The Apollo System features:
*Faster cleaning
*No more sludged up tanks
*Waste disposal to garbage
*Save up to 90% on chemicals
*Save up to 50% on electricity
*Save numerous manhours
Specifications:
|
Apollo AT10,000 Hot Tank
|
|
|
|
This series of tank is of modular design and can be stretched to accommodate longer loads.
|
|
Model
|
AT10,000 Agitating Hot Tank
|
|
Platform Size
|
1420 x 3700 mm
|
|
Floor Space Required
|
2320 x 4230 mm
|
|
Tank Internal Dimension to waterline
|
1800 x 3800 x 1400 mm
|
|
Tank Capacity
|
9600 Litres
|
|
Fluid Above Platform
|
1100 mm
|
|
Platform Raised Height
|
1800 mm
|
|
Platform Construction
|
250mm high Perimeter cage
|
|
|
Lift-out expanded metal platform inserts
|
|
Column Height to Top
|
3400mm
|
|
Lid Height Raised
|
3450mm
|
|
Tank Sheet Thickness
|
4mm
|
|
Maximum Load
|
3500 Kg with 250mm Rams
|
|
|
5000 Kg with 300mm Rams
|
|
Agitation
|
Double Acting Pneumatic
|
|
|
Oiler to Lift Rams, Remainder Oil Free
|
|
|
Automatic Water Trap Fitted
|
|
Ram Size
|
2 x 250 mm OR 2 x 300 mm
|
|
Lid Lift
|
Lid Only and Lid with Platform
|
|
Lid
|
Full Stainless Steel Skins
|
|
Power Required
|
415V 80A 5 Wire
|
|
Circuit Breakers
|
Fitted to Heater Circuits, Oil Skimmer And Centrifuge
|
|
|
Transformer has fuse protection
|
|
Electrical Wiring
|
Control circuits 24VAC, Wiring 110 Degrees rated
|
|
Visual Process Indicators
|
Auxiliary Contact Set allows connection
|
|
Heating Element Size
|
12 X 6 Kw
|
|
Heating Cycle 7 Day Timer
|
Yes + External override switch
|
|
Current Draw (maximum)
|
100 Amps
|
|
Air Requirement
|
100 cfm @ 100 psi
|
|
Power & Air Failure Safety Feature
|
Failsafe Pneumatic valving
|
|
Agitation Timer
|
0 – 300 hrs
|
|
Chemical Filter
|
Apollo 12” Centrifuge
|
|
Oil Skimmer
|
Disk Type
|
|
Oil Skimmer Run Timer
|
0 – 300 hrs
|
|
Pot Strainer
|
500 x 180mm, Sludge Drain,
|
|
|
2mm Perforated strainer insert
|
|
Chemical Required
|
1000 Kg
|
|
Rinse Bay Length (if fitted)
|
3700 mm
|
|
Rinse Bay depth (if fitted)
|
1700 mm
|
|
Crated for Export
|
4500 x 2600 x 3400 mm (L/B/H)
|
40 CuM
|
Weight 3500 Kg
|
|
Heated Rinse Tanks are available with the same dimensions less the centrifugal filter
and oil skimmer.
|
|
Rinse-off bays with rinse water storage tanks are available that partner the hot tank. When
the rinse bay water becomes contaminated with chemical it is used to top up the Hot Tank
by simply openeing a valve
|
|
|

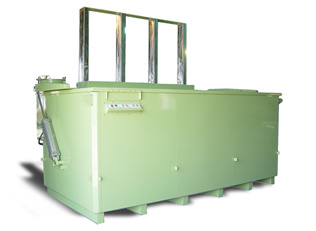

AT10000 caustic Hot Tank

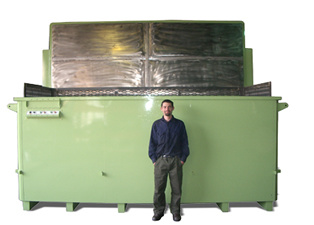

Apollo caustic Hot Tanks
The new generation caustic cleaning system with centrifugal filter and optional rinse-off bay
- Heavy duty construction.
- Tank double seam welded and all welds dye penetrant tested.
- Fully insulated to minimise energy consumption.
- Stainless steel lids to eliminate corrosion problems.
- Tanks available for aluminium cleaning and paint and powder coat stripping.
|
Tanks with Centrifugal Filter
- Reduced tank volume. No sludge settlement area required, plus minimised “Dead” area behind the platform reduces tank volume by approx 30%.
- Initial chemical fill thus reduced by 30%.
- Heating energy consumption reduced by 30%.
- Chemical life greatly extended & chemical top up reduced up to 75%.
- No need to pre-clean parts.
- Cleaning times are greatly reduced. 30 to 60 minute cleaning cycles are common.
- Centrifugal filter cleaning time approx 15 minutes ever week on average.
- Waste solids from the centrifugal filter are generally suitable for disposal in the industrial waste bin.
- The angled control panel is mounted in a purpose built steel enclosure on the left front of the tank.
- Electronic timers control agitation cycle time, oil skimmer operation and centrifuge operation.
- Long life miniature plug-in relays are used for improved reliability.
- There are no microswitches to fail, magnetic reedswitches are used for ram position sensing.
- Electric over pneumatic controls are used for ease of troubleshooting.
- Pneumatic lid lift – automatic with platform lift or independent of platform for servicing.
- An optional rinse bay attaches to the tank, reducing spillage. Contaminated rinse water is used to top up the hot tank to replace boil off. This system eliminates chemical contaminated liquid waste.
- In very greasy applications (eg railway bearing degreasing) an optional oil and grease separator system removes very heavy oil and grease loads.
- An installation, operation and maintenance handbook complete with servicing diagrams and electrical circuits are supplied with each machine.
- Electrical component suppliers part numbers included to facilitate local procurement.
AT1600 and larger Tanks – Additional Features
- Surface oil is easily removed by means of the oil skimmer. Oil Skimming to take place when the tank is not agitating.
- Fail safe pneumatics lock the agitating platform and lid in the event of power or air supply failure.
|
