* CENTRIFUGAL PUMPS *
Close coupled units for industrial and irrigation purposes
Totally enclosed fan cooled single and three phase pump units
Single phase pumps:
Suitable for 220-240 Volt, 60Hz supplies
MT151:
1.5kW, 2885 RPM, O/All length 464mm, Suction inlet 1 1/2" BSP Thread, Delivery outlet 1 1/2" BSP Flange with holes on 98mm PCD.
Output:
550 Litres per minute at 2.5 Metres Total Head. 50 L/M @ 27 M/Head
MT201:
2.2kW, 2885 RPM, O/All length 490mm, Suction inlet 1 1/2" BSP Thread, Delivery outlet 1 1/2" BSP Flange with holes on 98mm PCD.
Output:
550 Litres per minute at 5 Metres Total Head. 100 L/M @ 30 M/Head
Three Phase Pumps:
Suitable for 380-415 Volt, 50Hz supplies.
Note: Three phase motors must have thermal protection devices incorporated in the switch gear to preserve Westate warranty
MT303:
2.2kW, 2900 RPM, O/All length 420mm, Suction inlet 1 1/2" BSP Thread, Delivery outlet 1 1/2" BSP Flange with holes on 98mm PCD.
Output:
550 Litres per minute at 5 Metres Total Head. 100 L/M @ 30 M/Head
Westate large capacity 3 phase pumps:
5.5 to 10 Horsepower (4 to 7.5kW)
LO553:
4kW, 2850 RPM, O/All length 530mm, Suction inlet Flange with 4 X 17mm holes on 113mm PCD (Opening 2" Dia.) Delivery Flange with 4 X 14mm Holes on 99mm PCD. (Opening 1 1/2" Dia.)
Output:
640 Litres per minute at 5 Metres total Head. 100 L/M @40 M. Head
LO753:
5.5kW, 2850 RPM, O/All length 502mm, Suction inlet Flange with 4 X 17mm holes on 113mm PCD (Opening 2" Dia.) Delivery Flange with 4 X 14mm Holes on 99mm PCD. (Opening 1 1/2" Dia.)
Output:
670 Litres per minute at 25 Metres total Head. 200 L/M @50 M. Head
LO953:
7.5kW, 2850 RPM, O/All length 582mm, Suction inlet Flange with 4 X 17mm holes on 113mm PCD (Opening 2" Dia.) Delivery Flange with 4 X 14mm Holes on 99mm PCD. (Opening 1 1/2" Dia.)
Output:
680 Litres per minute at 30 Metres total Head. 100 L/M @60 M. Head
Note: Westate pumps are overloading at open discharge.
Garden Sprinkler Guide:
Common pop-up spray types require between 1.5 and 2.5 gals/min. at 20 psi.
Common impact types require between 2.5 and 3.5 gals/min. at 30 to 50 psi.
Three phase motors must have thermal protection devices
incorporated in the switch gear to preserve Westate warranty.
All Westate Pumps are:
- thoroughly tested prior to despatch.
- manufactured of high grade cast iron. (Pump bodies)
- fitted with low maintenance mechanical seal.
- fitted with Viton and Silica Carbide seals available.
- have accurately balanced impeller
 |
|

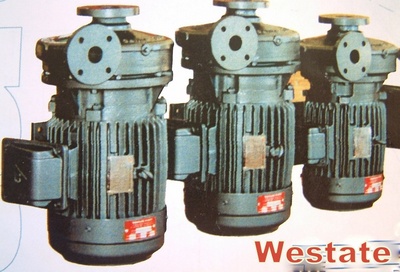

Types LO553, LO753 and LO953
|
Types MT303, MT201 and MT151
|
